TTM Motor
1 / 5
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.
| MODEL | RATED | NO LOAD | RATED | STALL | ||
|---|---|---|---|---|---|---|
| VOLTAGE | SPEED | CURRENT | SPEED | CURRENT | CURRENT | |
| V | r/min | mA | r/min | mA | mA | |
| 0724 | 1.5 | 19900 | 45 | 17600 | 108 | 480 |
| 0724 | 5 | 20000 | 33 | 18500 | 65 | 400 |
| 0724 | 3 | 25300 | 28 | 21300 | 89 | 370 |

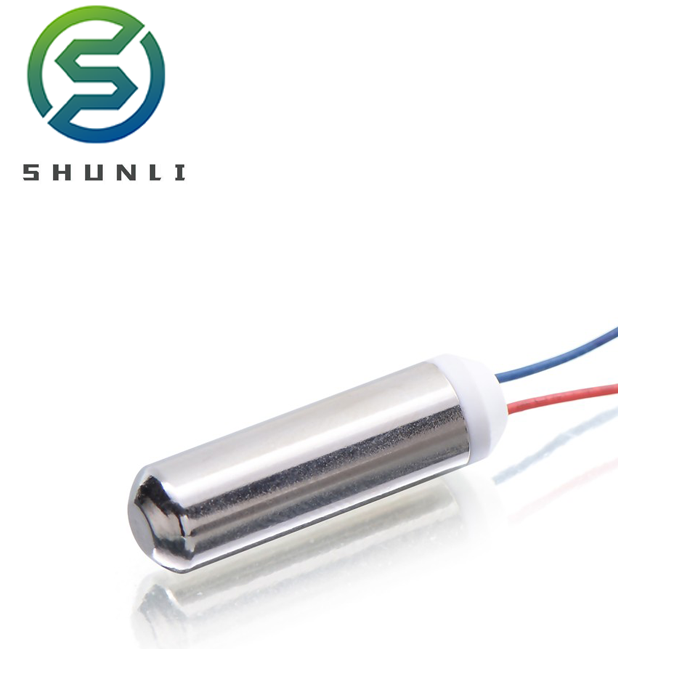

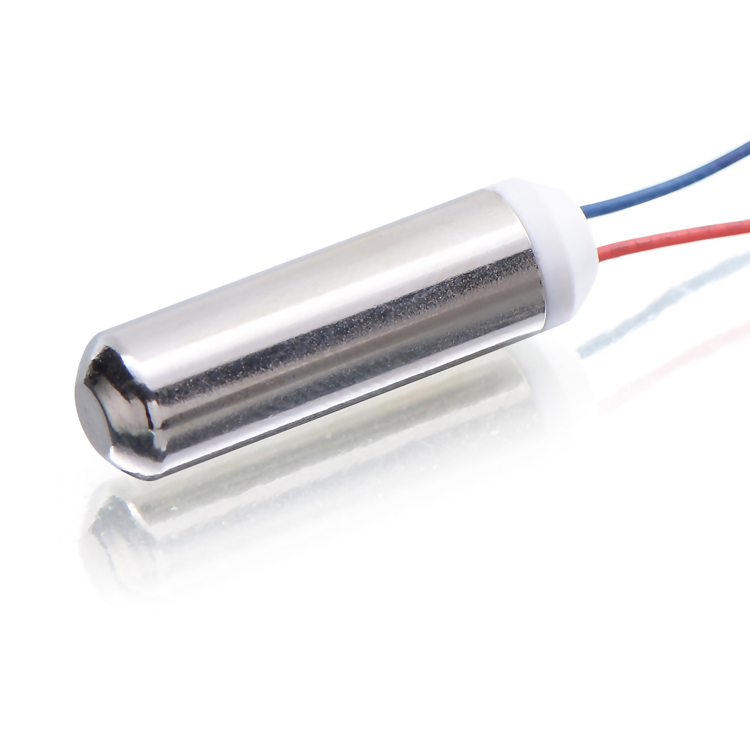

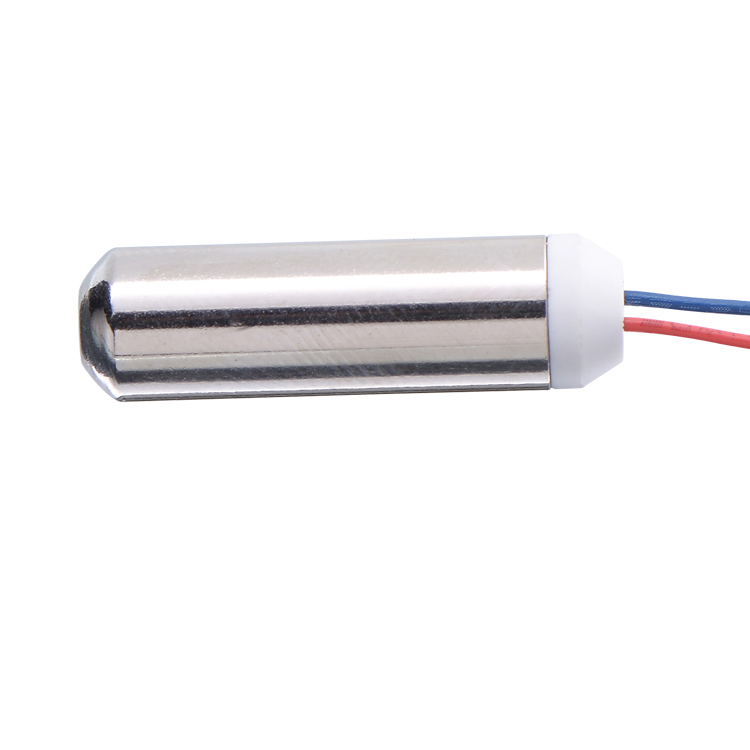

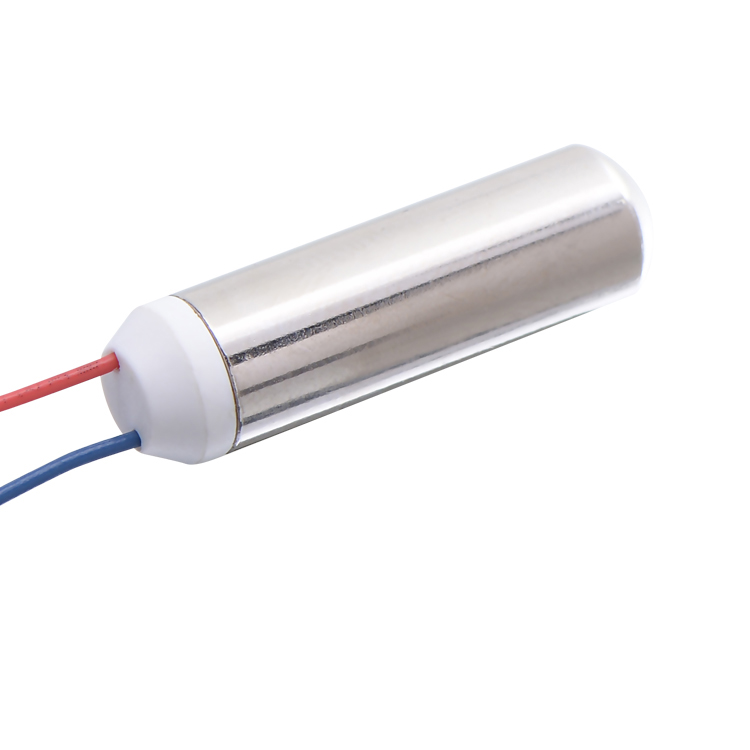

These micro vibration motors are widely used in beauty apparatus, personal care devices, facial massagers, health monitoring instruments, and small electronic products requiring tactile feedback.
We offer multiple voltage configurations including 2.4V, 3.7V, and 5V. Different voltage levels correspond to specific speed and current profiles as detailed in our specifications table.
By inserting the drive inside the motor housing, the system achieves more accurate data capture, cleaner response patterns, and enhanced overall operational stability with high efficiency.
Yes, these DC electric mini motors are optimized to provide stable vibration frequencies even at low RPM ranges, ensuring comfortable usage in beauty and massage devices.
Our motors are engineered using high-quality materials to ensure long service life, consistent heat dissipation, and superior reliability under standard working loads.
