Explore our highly-customized, high-performance DC vibrating motors engineered for compact spacing, low energy draw, and precise tactical feedback profiles.
At TTM Motor, we don’t just manufacture motors—we engineering motion. We understand that in the world of advanced robotics, medical equipment, and smart automation, a fraction of a millimeter or a micro-level torque variance can dictate the success of your entire project. That is why our Shanghai-based R&D facility is dedicated entirely to pushing the boundaries of micro-drive performance.
Every micro DC motor, planetary gearhead, and brushless drive (BLDC) we produce is a result of rigorous cross-disciplinary engineering. Armed with advanced CAD/CAM software, automated winding technologies, and precision dynamic balancing testing equipment, our in-house engineering team bridges the gap between your conceptual design and volume manufacturing.
True to our Top Quality & Customization ethos, we specialize in solving complex integration challenges. Whether your application requires an integrated encoder for precise feedback, a custom-molded lead screw shaft, or a high-vacuum-compatible enclosure, TTM Motor has the technical expertise to customize and deliver ready-to-install motion sub-assemblies that meet your exact specifications.
Years of R&D Innovation
Field Return Rate (PPM)
Advanced QC Lab Stations
Certified Process Controls
The industrial landscape for micro-scale mechanical actuation is undergoing a massive shift towards structural miniaturization and haptic-intensive interfaces.
Consumers require sophisticated tactile feedback in smart wearables, medical diagnostic wands, and high-fidelity virtual reality hardware. Traditional ERM motors are evolving towards micro coreless configurations that offer rapid start-stop acceleration profiles.
With the rise of IoT and remote battery-operated medical devices, minimizing standard operating current (down to <1.5V-3V inputs) while maximizing rotational centrifugal force is a critical criteria for energy-efficient products.
Micro vibrating motors are being widely used in localized beauty massagers, cosmetic penetration wands, and therapeutic micro-fluidic pumps, necessitating precise rotational speeds from 6,000 RPM up to 10,000+ RPM under load.
Modern micro vibration motors leverage precious metal (gold/platinum alloy) brush gear or advanced graphite structures. While graphite brushes offer superior operating life in high-current 12V-24V applications, precious metal brushes provide extremely low electrical noise and startup voltage profiles in 1.5V-5V micro-devices.
Select the optimal physical topology based on your project's torque requirement, dynamic feedback rate, and volumetric restrictions.
| Motor Classification | Typical Volts (V) | Dynamic Speed Range (RPM) | Response Time (Start/Stop) | Power Output & Torque | Recommended Applications |
|---|---|---|---|---|---|

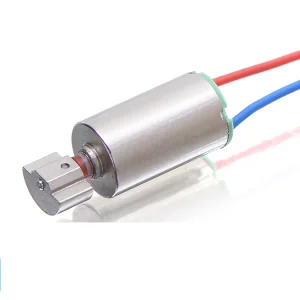

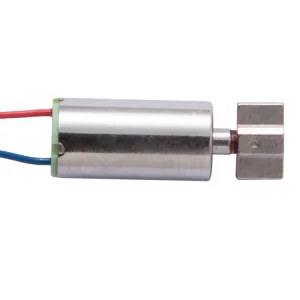

| 6mm - 10mm Coreless Vibration Motor | 1.5V - 3.7V | 8,000 - 15,000 | < 15 ms / < 20 ms | Medium Dynamic Force | Mobile Phones, Smart Wearables, Intimate Wellness Devices |

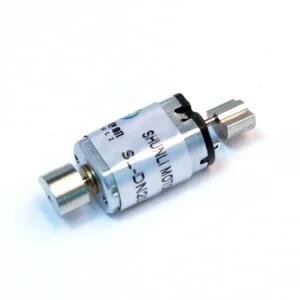

| N20 Miniature Magnetic Drive | 3.0V - 6.0V | 6,000 - 12,000 | < 30 ms / < 35 ms | High Centrifugal Weight | Aesthetic Massagers, Industrial Instruments, Interactive Toys |

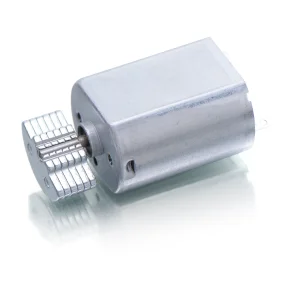

| 130 Series Carbon Brush Motor | 3.0V - 12.0V | 5,000 - 10,000 | < 40 ms / < 40 ms | Very High Shock Torque | Home Appliances, Automotive Seat Haptics, High-Torque Massagers |
| 050 Low Noise Miniature Drive | 3.0V - 7.2V | 6,100 - 9,000 | < 25 ms / < 30 ms | Balanced Dynamic Load | Precision Medical Devices, Face Cleaners, Handheld Scanners |
Our strict quality control workflow spans from raw material incoming inspection (IQC) to automated testing, guaranteeing continuous operation reliability.
We leverage world-class tooling machines to achieve micro-level mechanical tolerances on internal gears, shafts, and commutator components.
Every batch undergoes simulated environmental stress profiling to confirm durability thresholds in harsh atmospheric conditions.
Understanding environmental operational stresses across multiple industries allows us to fine-tune our DC motors for optimal field efficiency.
Why Tier-1 industrial buyers source their precision miniature actuation devices directly from TTM Motor's Shanghai operations.
Our Shanghai facility leverages immediate geographic access to raw materials (including high-grade Neodymium iron boron magnets, ultra-fine copper wire winding suppliers, and precision bearing mills). This proximity guarantees highly stable supply lines and keeps procurement and logistics costs significantly below those of North American or European counterparts, without compromising raw element quality.
Rather than outsourcing tooling production, our Slow-feeding NC wire-cut machines and high-precision EDMs allow us to develop, adjust, and deploy custom injection molds and gear assemblies in-house. This shortens prototype turnaround cycles from weeks to just a few days, enabling rapid engineering changes (ECN) to match our customers' evolving mechanical footprints.
We combine computerized automatic winding machines with multiple validation checks at every production step. In our QC Labs, we utilize Video Measuring Instruments, Soundproof Chambers, and Dynamometer machines to run continuous performance testing. This rigorous system allows us to provide full lot traceability and maintain quality standards that satisfy demanding industrial, medical, and aerospace sourcing regulations.
Find technical answers directly from our engineering team regarding design parameters, integration, and custom orders.
