| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7 / 262 | 10.6 | 4.8 | 204 / 2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6 / 261.3 | 40.36 | 48.89 | 281.4 / 2870 | |

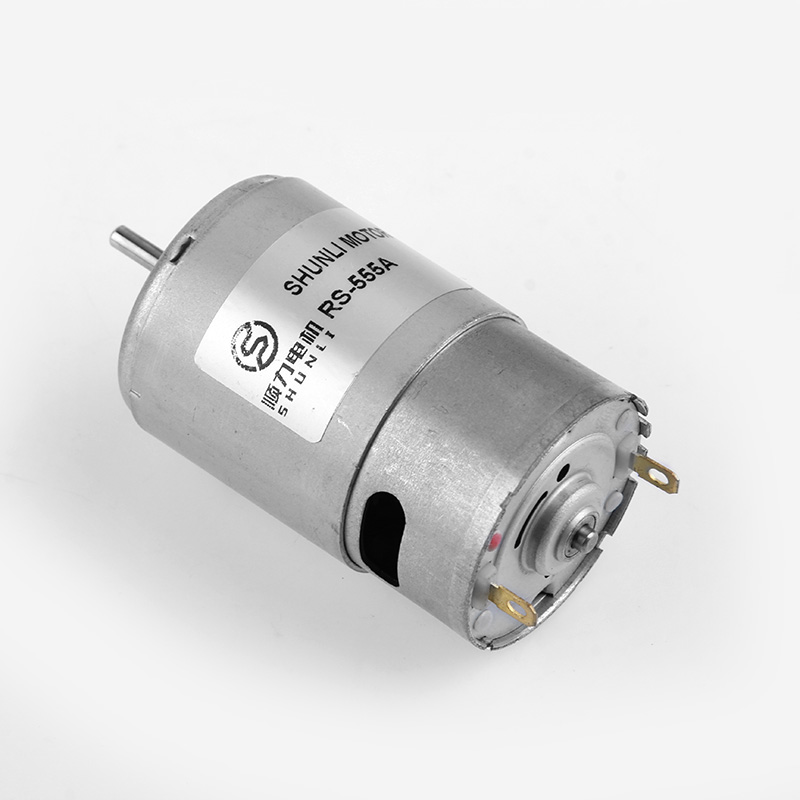

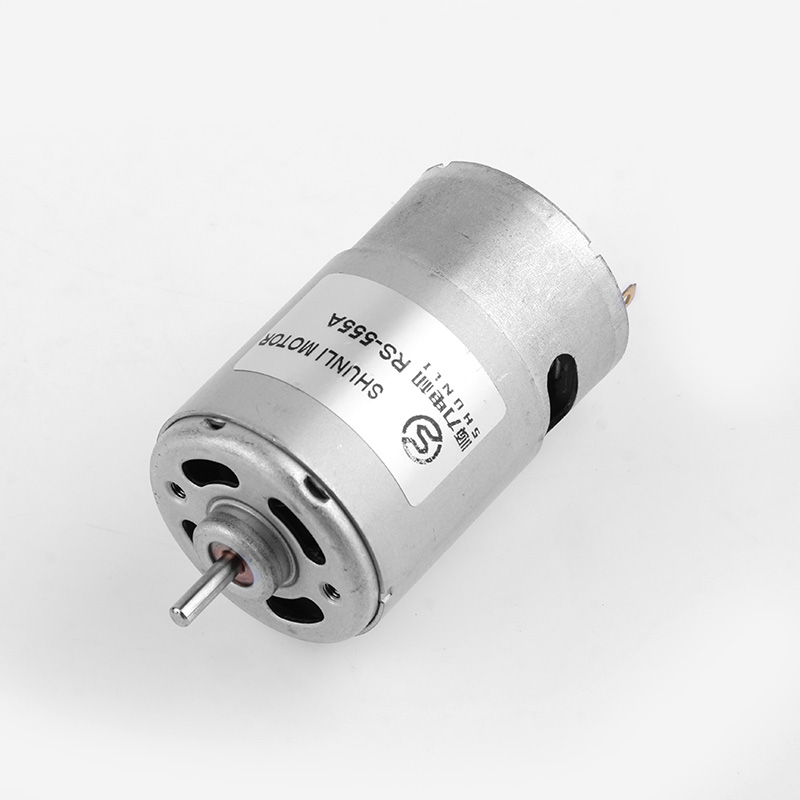

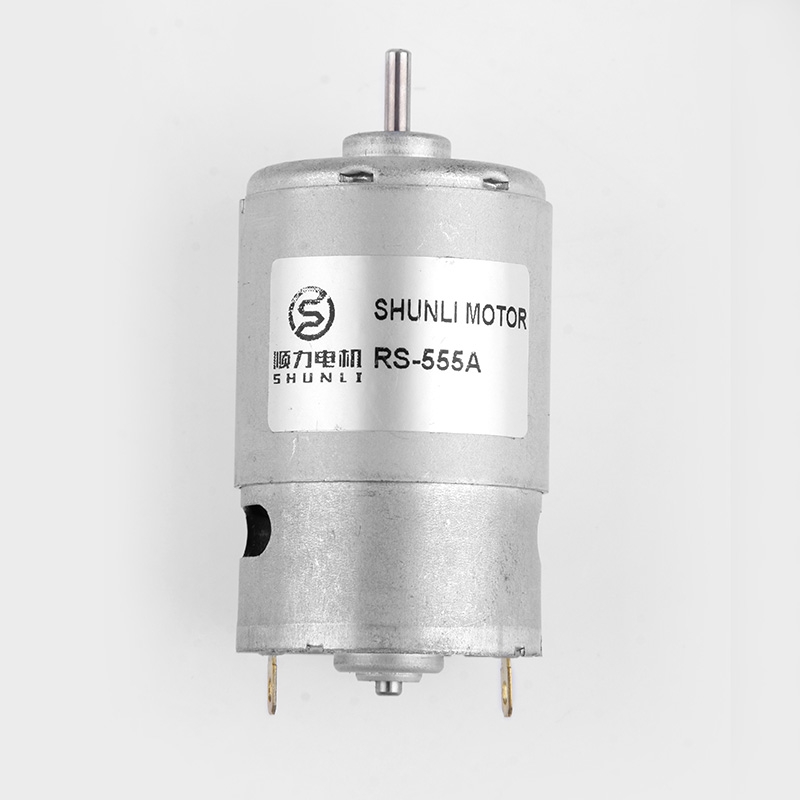

| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9 / 223.4 | 15.35 | 11.31 | 156 / 1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2 / 195.8 | 12.09 | 4.2 | 124.5 / 1270 | |
Looking forward to your feedback!
We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of professional experience.
We can draw up an Trade Assurance Order online for new customers, which supports payments via Mastercard, Visa, etc. Customers can also pay via PayPal or T/T.
Yes, we can customize and manufacture suitable motors according to our customers' specific requirements.
Yes, we hold CE, FCC, ISO, and other relevant certificates. If you have other specific certification requirements, we can apply for them for you.
We have professional inspection staff on every production line process. Once the motor is fully assembled, we use quality testing machinery, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers to ensure performance.
Our standard gear motor models support voltage ranges from 6.0V to 24.0V DC. Custom voltage options can be engineered based on your specific application needs.
