TTM Motor
1 / 4

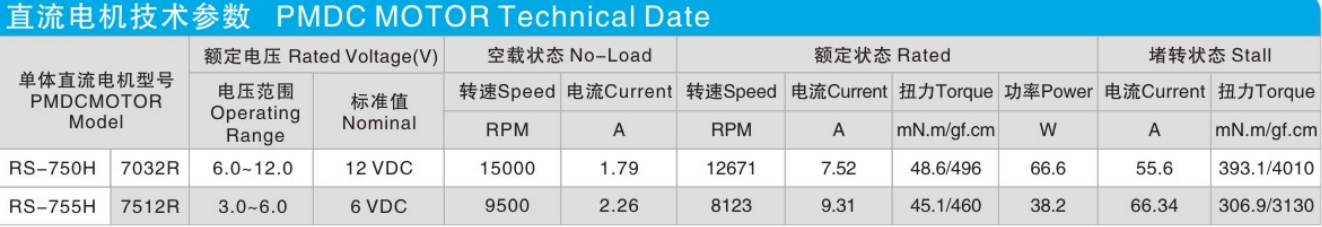

| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-750H | 7032R | 6.0~12.0 | 12VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6 / 496 | 66.6 | 55.6 | 393.1 / 4010 |
| RS-755H | 7512R | 3.0~6.0 | 6VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1 / 460 | 38.2 | 66.34 | 306.9 / 3130 |
Established in 2005, the high-tech enterprise integrates the research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. The products are widely used in automobiles, communications equipment, smart home systems, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics, and other high-end transmission structures. These products are exported to more than 50 countries and regions worldwide.
