📦 Product Description

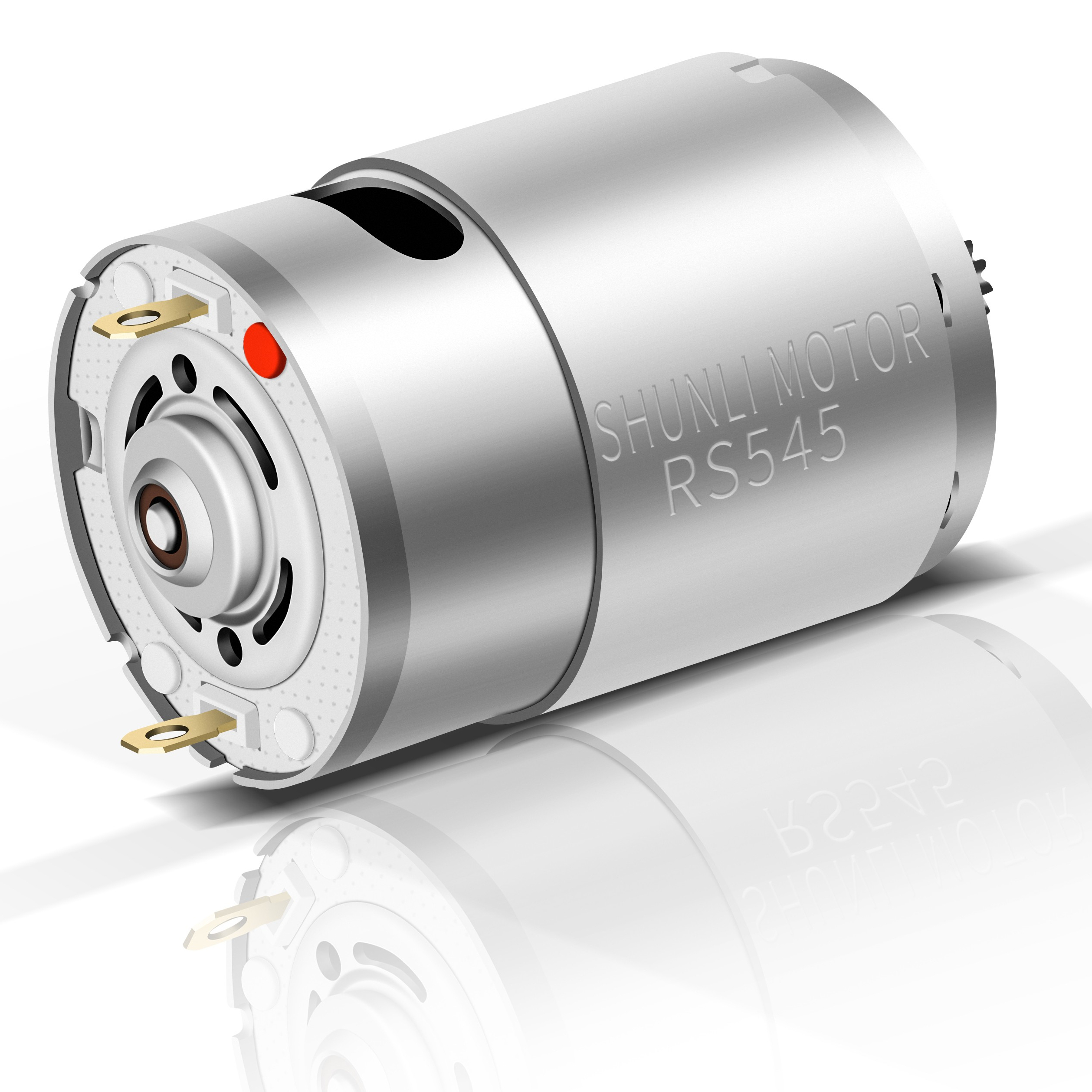

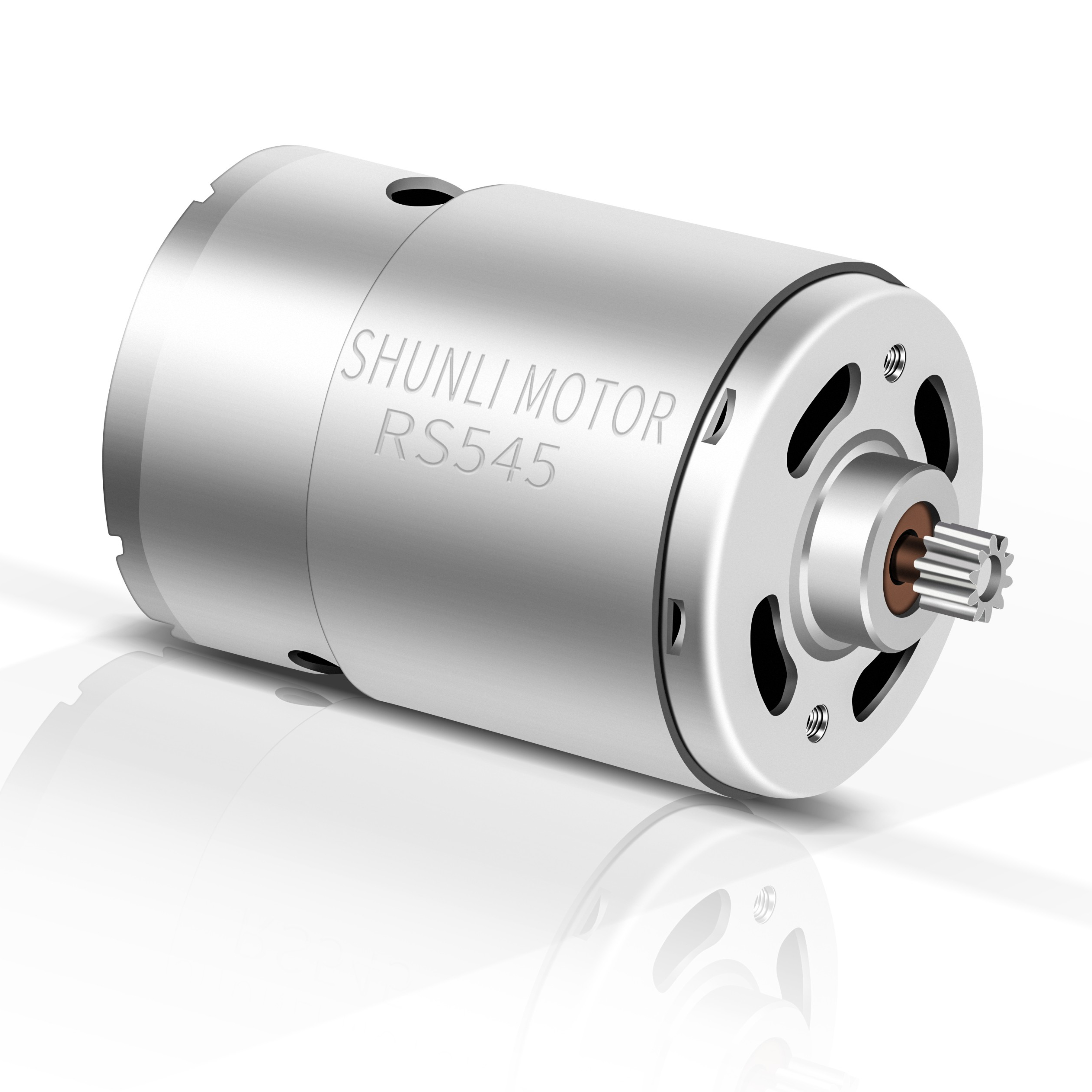

High power low rpm motor for home appliances electrical equipment micro strong magnet motor 545 12v dc electric motor
💡 Product Details
🔧 Motor Customized Specification, Please contact me.

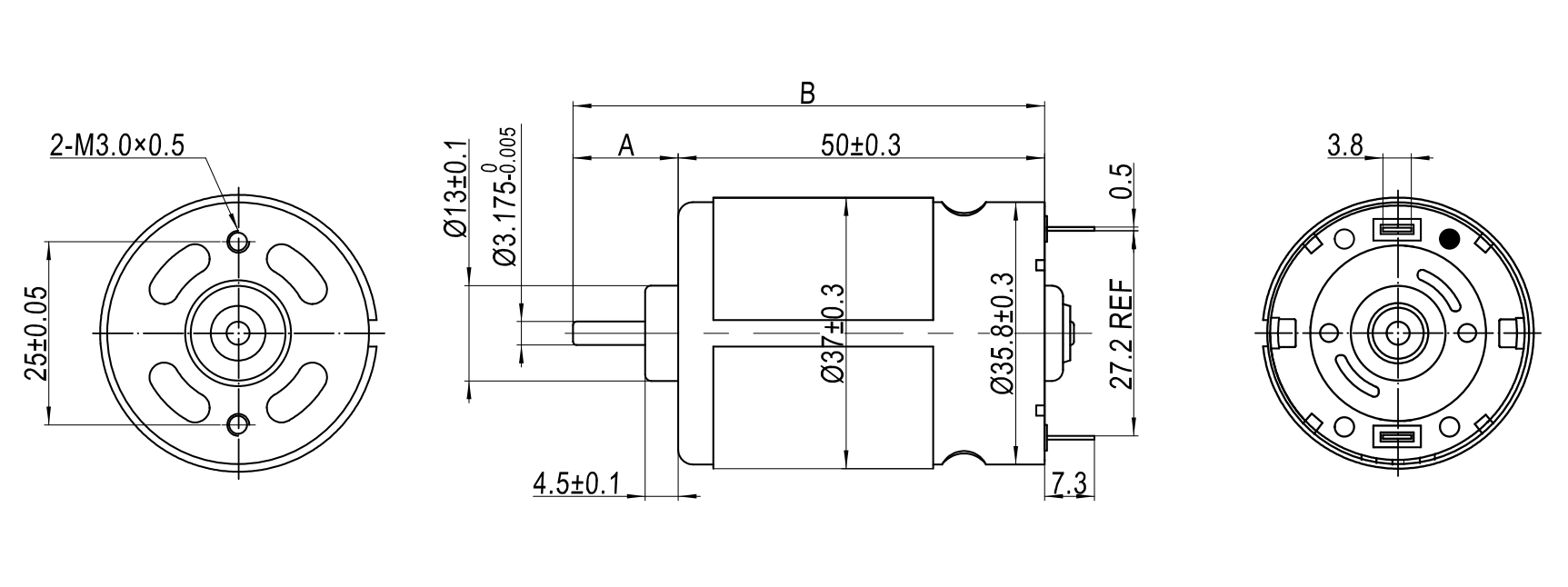

📐 Reference Drawing
------ RS - 545 A
------ RS - 555 A
------ RS - 575 A
⚡ The length of shaft can be customized, Please contact me.
📊 Reference Datasheet
| PMDC MOTOR Technical Data |
| Model |
Rated Voltage(V) |
No-Load |
Rated |
Stall |
| Operating Range |
Nominal |
Speed |
Current |
Speed |
Current |
Torque |
Power |
Current |
Torque |
| RPM |
A |
RPM |
A |
mN.m / gf.cm |
W |
A |
mN.m / gf.cm |
| RS-550H |
23128R |
6.0~24.0 |
24VDC |
4500 |
0.1 |
3932 |
0.39 |
25.7/262 |
10.6 |
4.8 |
204/2080 |
| 6034 |
6.0~12.0 |
12VDC |
16000 |
1.12 |
13613 |
4.96 |
25.6/261.3 |
40.36 |
48.89 |
281.4/2870 |
| RS-555H |
3540 |
6.0~12.0 |
12VDC |
7800 |
0.3 |
6708 |
1.84 |
21.9/223.4 |
15.35 |
11.31 |
156/1591 |
| 23100 |
6.0~24.0 |
24VDC |
7000 |
0.14 |
6004 |
0.77 |
19.2/195.8 |
12.09 |
4.2 |
124.5/1270 |
⚙️ Application
Frequently Asked Questions (FAQ)
Q1: What are the typical applications for these micro DC motors?
These micro strong magnet motors are widely used in home appliances, electrical equipment, and various compact high-power low-RPM systems.
Q2: Can the motor specifications be customized?
Yes, we provide customized specifications for our DC motors to meet your specific performance requirements. Please reach out to share your technical needs.
Q3: Is the shaft length adjustable/customizable?
Yes, the length of the shaft can be fully customized based on your design and assembly requirements.
Q4: What models are featured in your technical datasheet?
The reference datasheet covers our RS-550H and RS-555H series models, listing detailed metrics for operating voltages (6.0V to 24.0V), no-load, and rated conditions.
Q5: What voltages do these 545/550/555 series DC motors support?
These micro DC electric motors generally operate within a range of 6V to 24V DC, including common nominal voltages like 12V and 24V.
Q6: Do these micro DC motors have quality certifications?
Yes, our motors are fully certified according to industry standards, ensuring reliable performance and safety compliance. Detailed certification files are available.
