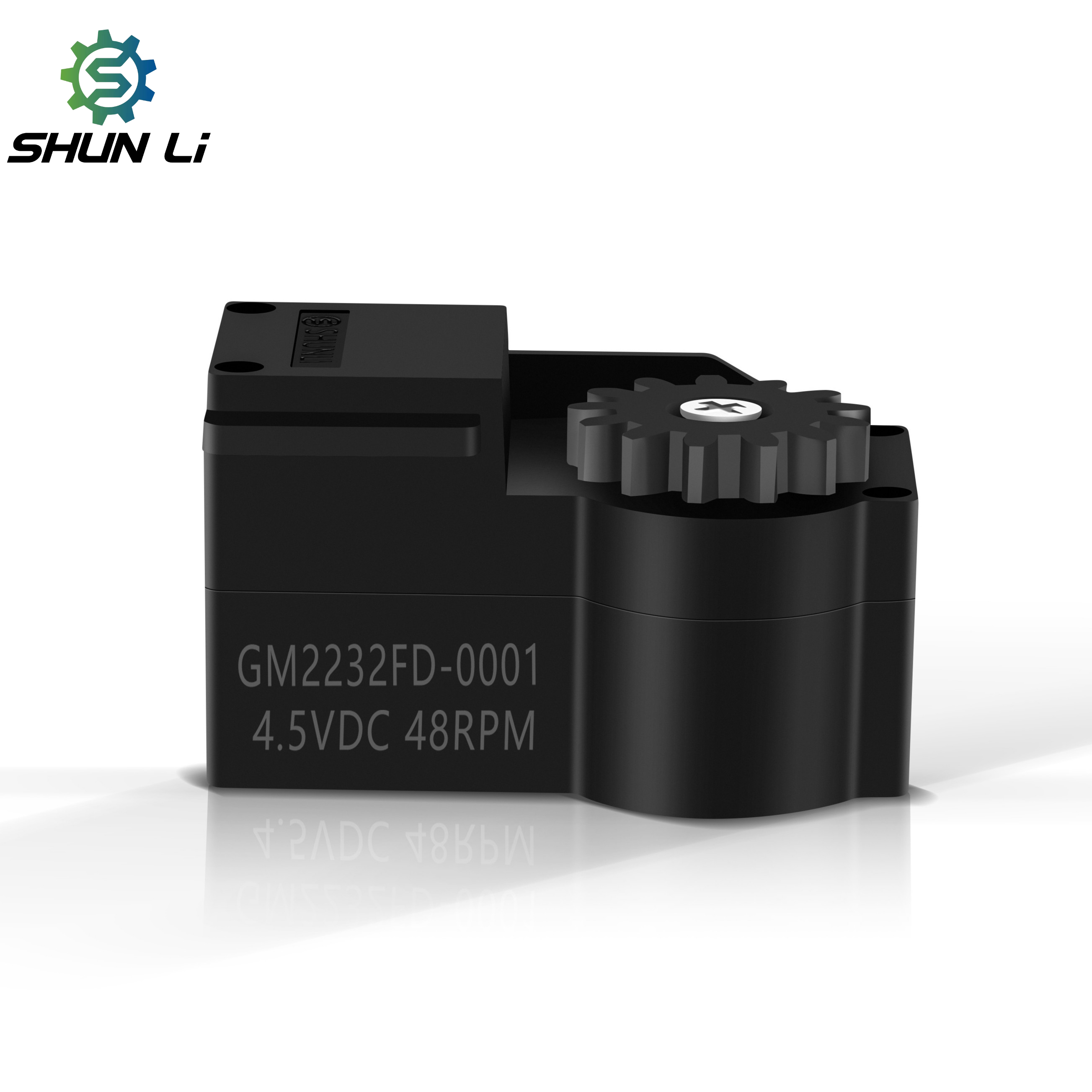

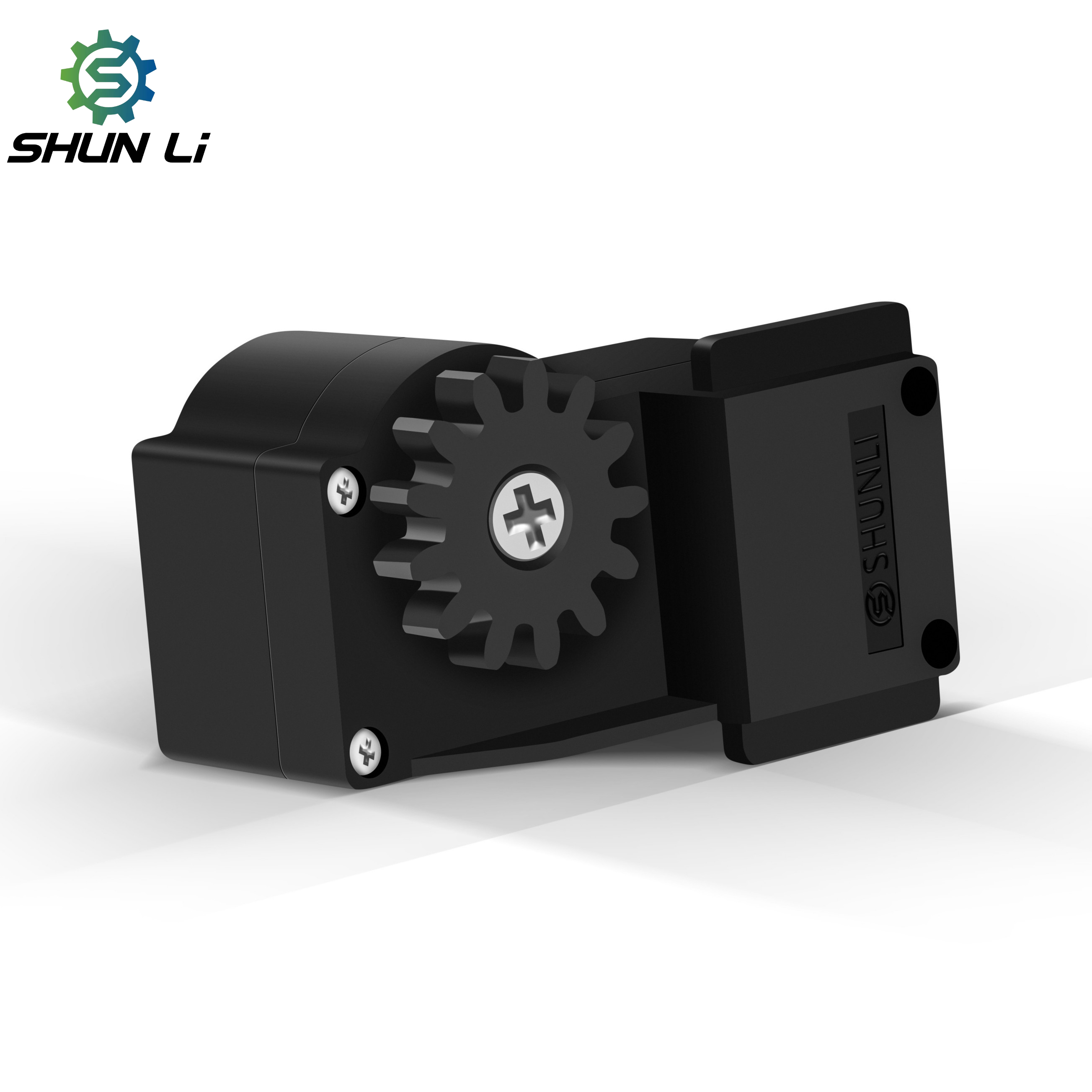

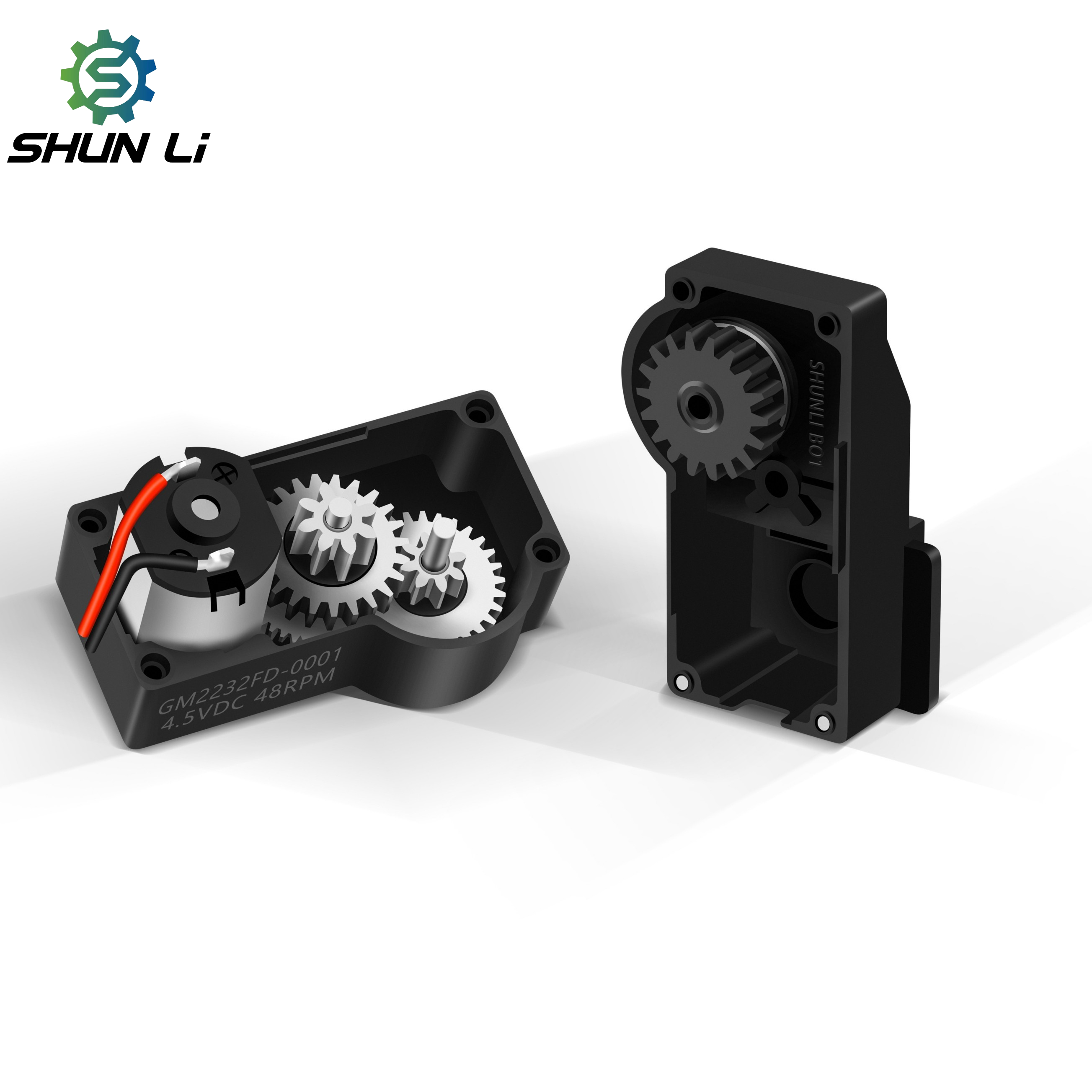

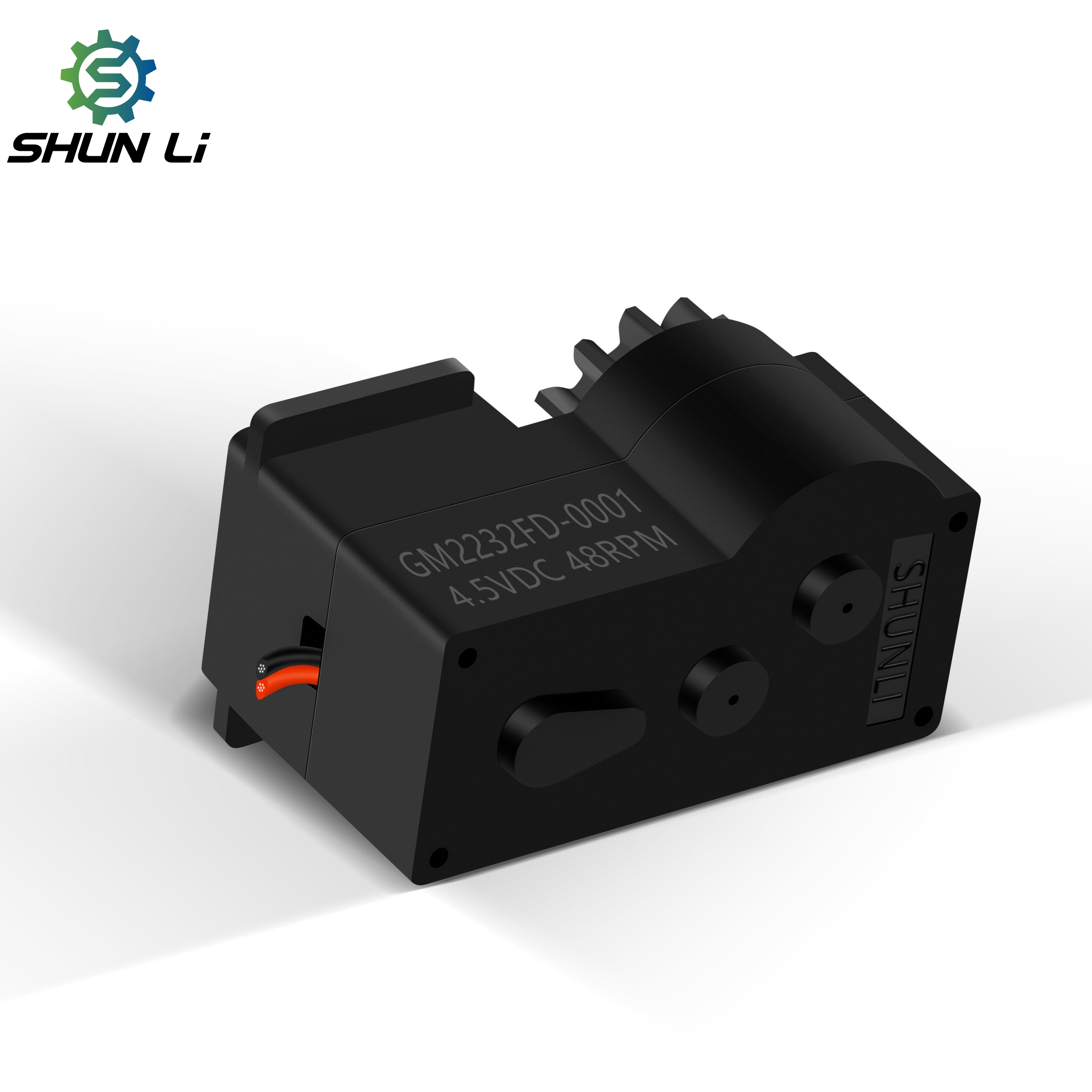

Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
1 / 4
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock

Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock

Send Inquiry

Product Description

Product Overview
Product Dimensions
Product Model GM2232FD-0001
Ratio 1:267K
Speed 44RPM-55RPM
Voltage 4.5V
Rated Torque 40 mN.m
Customization The Transmission Dimensions And Motor Parameters Can Be Customized

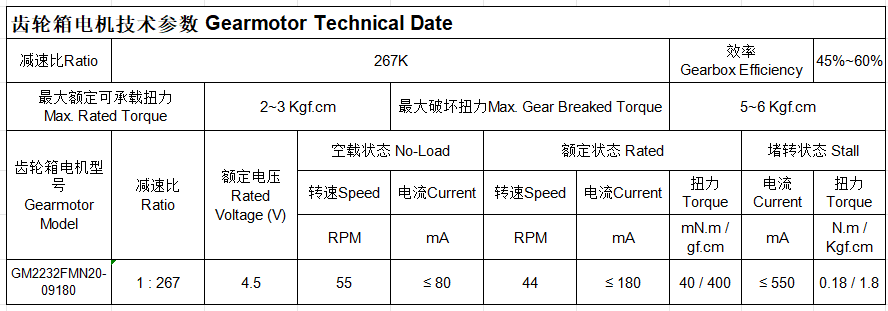

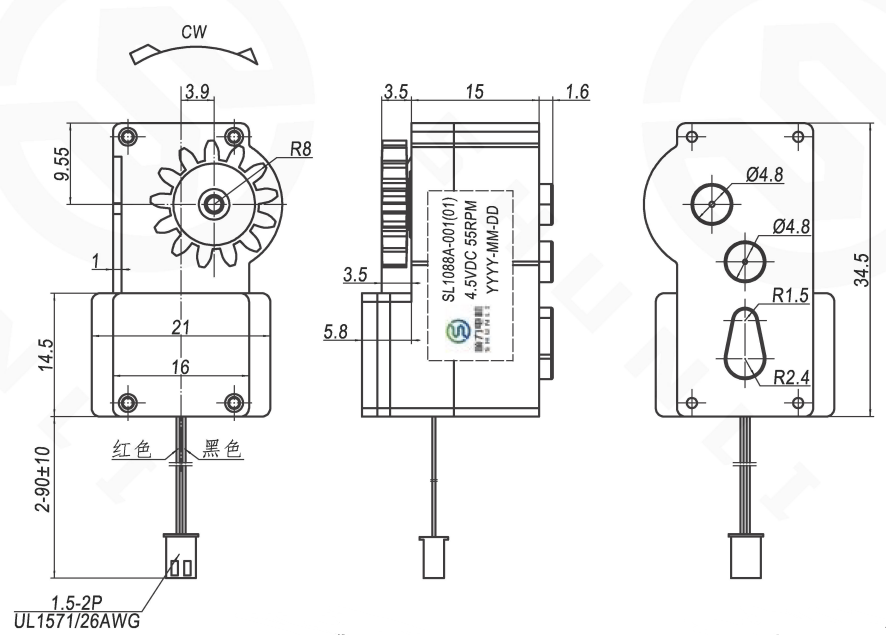

Technical Specifications Drawing Performance Curve Chart
Production Detail 1 Production Detail 2 Production Detail 3 Production Detail 4 Production Detail 5 Production Detail 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional experience.
What is the payment term for a new customer?
We can set up an online Trade Assurance Order for new clients, allowing for online payments via Master Card, Visa, etc. Payments can also be processed via PayPal, TT, and other methods.
I cannot find a suitable motor on your website; can you customize one for me?
Yes, we can customize a motor to match your specific requirements and technical parameters.
Do you have certifications for your motors?
Yes, we hold CE, FCC, ISO, and other relevant certifications. If you require specific additional certifications, we can apply for them on your behalf.
How do you handle Quality Control?
We employ professional inspectors at every stage of the production line. Once the motor is fully assembled, we conduct testing using advanced quality assurance machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
