China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
1 / 5
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

Send Inquiry

Product Description

DC Gear Motor Banner
GM37BM545 DC Gear Motor
Product Model GM37BM545/555/575
Gearbox Length 50mm-65mm
Speed 17.5RPM-240RPM
Voltage 24V/24V/12V
Torque 0.85 N.m/1.8 N.m/2.0 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

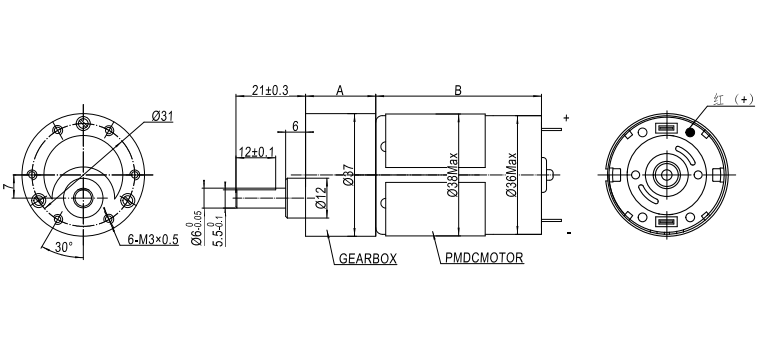

DC Gear Motor Dimensions

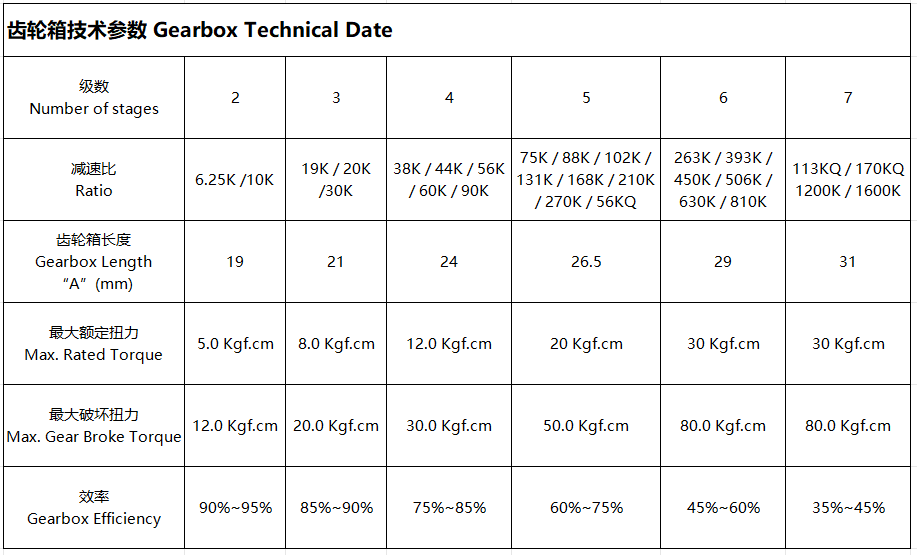

DC Gear Motor Performance Curve

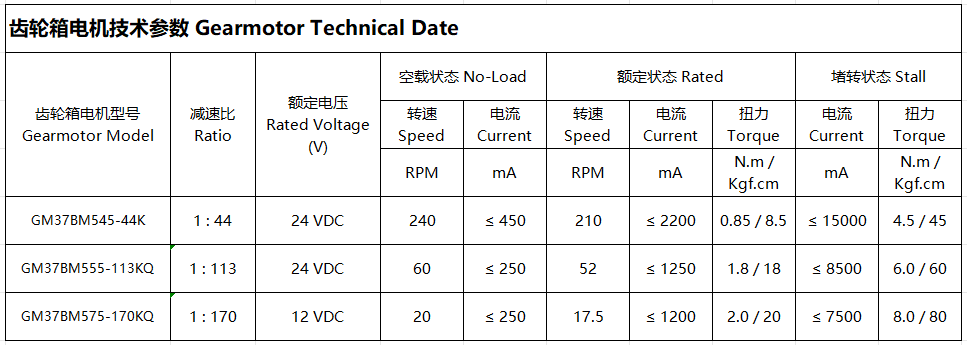

DC Gear Motor Specifications Chart

Product Gallery

DC Gear Motor Detail View 1
DC Gear Motor Detail View 2
DC Gear Motor Detail View 3
DC Gear Motor Detail View 4
DC Gear Motor Detail View 5
DC Gear Motor Detail View 6

Frequently Asked Questions

Q Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
Q What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Q I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
Q How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
